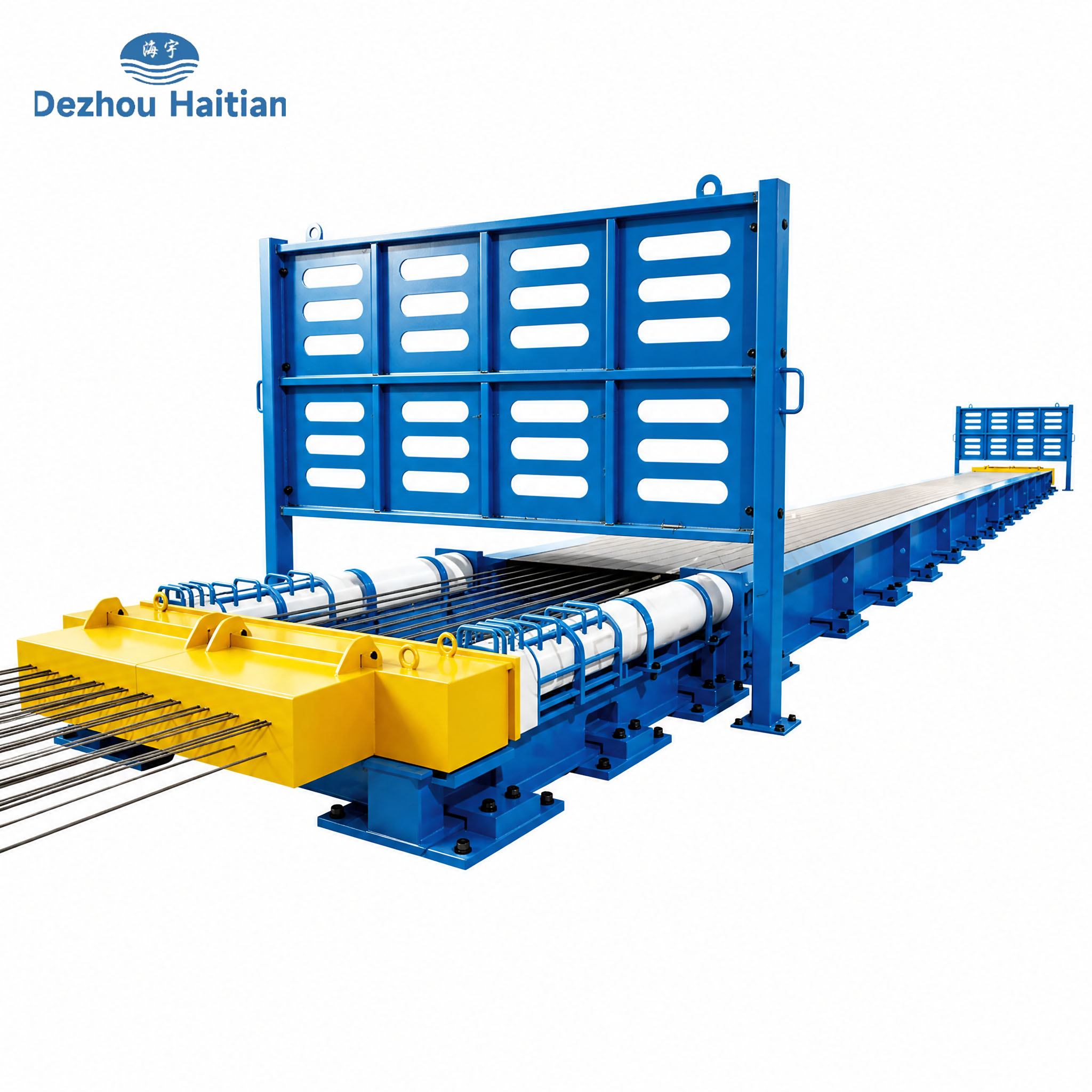

Prestressed Precast Beam Production Line for Concrete Lintel and T-Beam Manufacturing
High-Tensile Prestressing Control: Equipped with a heavy-duty hydraulic tensioning end frame that securely anchors prestressed steel wires, ensuring exact load-bearing standards.
Multi-Cavity Simultaneous Casting: Designed with adjustable long-line partitions, allowing your factory to cast multiple concrete lintels or T-beams in a single pour.
Industrial-Grade Steel Durability: Constructed with premium-grade, Q235B thick steel plates treated with anti-corrosion coating, offering a 10+ year mold lifespan without warping.
Seamless Demolding Finish: Precision-machined internal surfaces prevent concrete adhesion, yielding paint-ready "mirror" finishes and minimizing on-site patch-up costs.

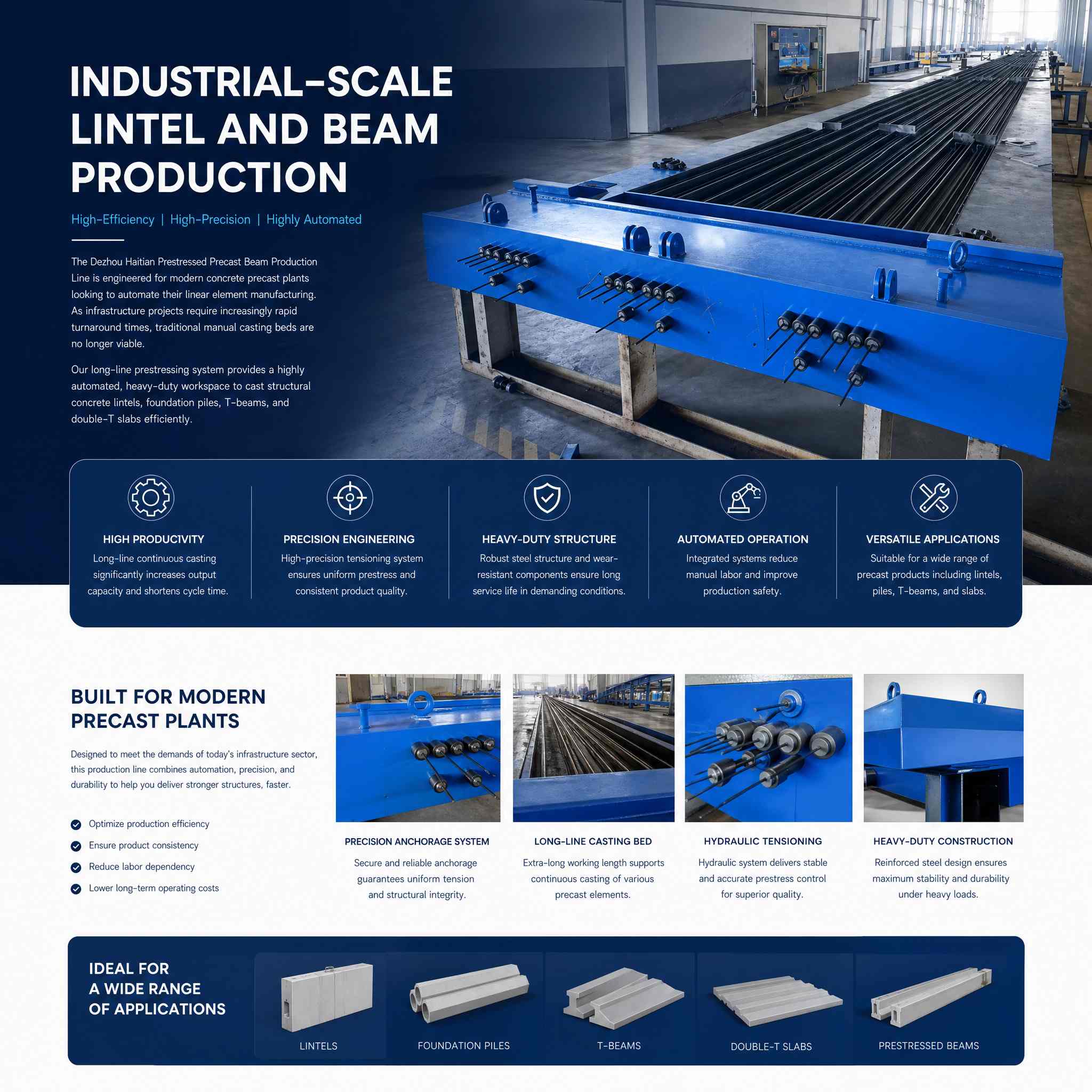

Industrial-Scale Lintel and Beam Production
The Dezhou Haitian Prestressed Precast Beam Production Line is engineered for modern concrete precast plants looking to automate their linear element manufacturing. As infrastructure projects require increasingly rapid turnaround times, traditional manual casting beds are no longer viable. Our long-line prestressing system provides a highly automated, heavy-duty workspace to cast structural concrete lintels, foundation piles, T-beams, and double-T slabs efficiently.

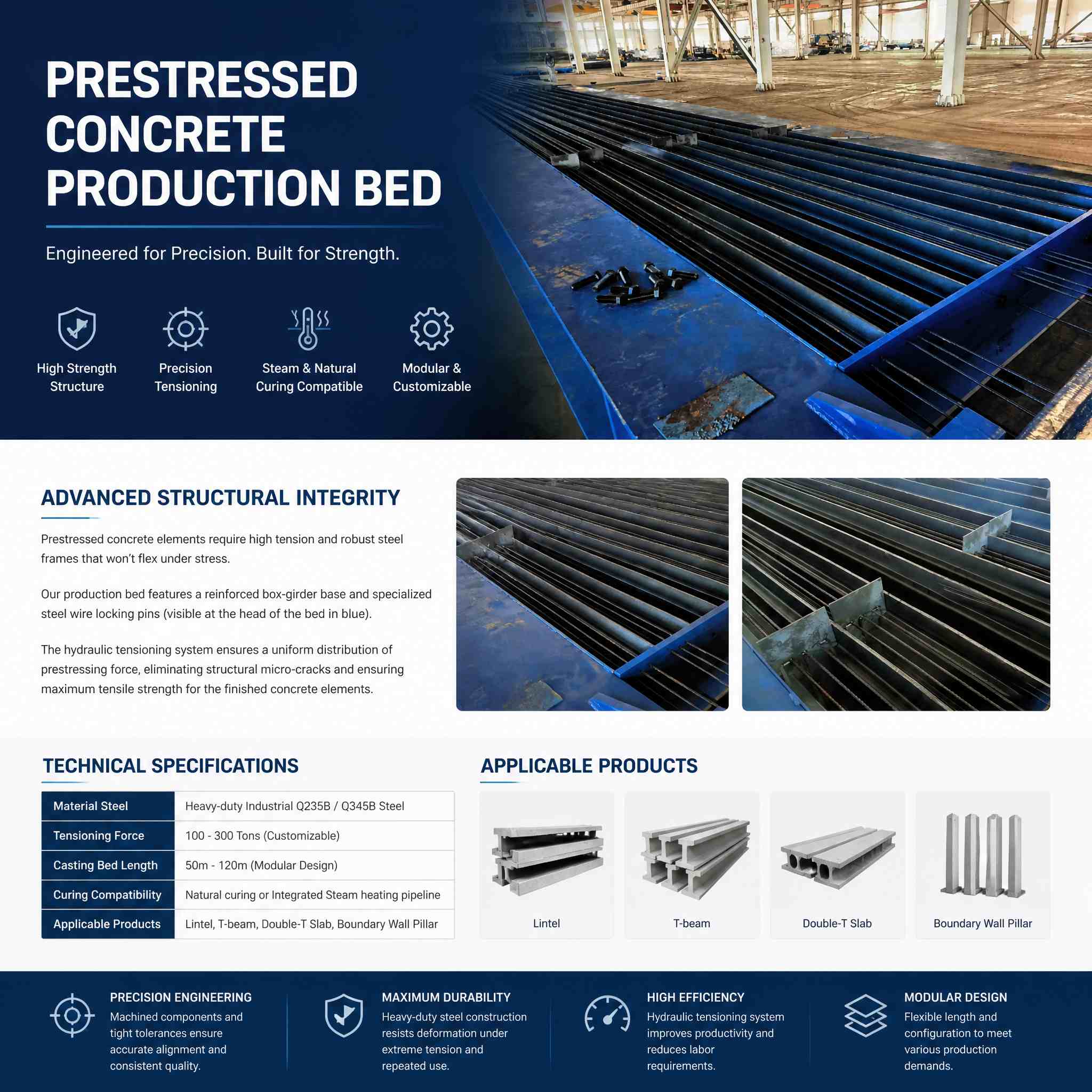

Advanced Structural Integrity
Prestressed concrete elements require high tension and robust steel frames that won't flex under stress. Our production bed features a reinforced box-girder base and specialized steel wire locking pins (visible at the head of the bed in blue). The hydraulic tensioning system ensures a uniform distribution of prestressing force, eliminating structural micro-cracks and ensuring maximum tensile strength for the finished concrete elements.
Technical Specifications (典型技术规格表):
| Feature | Parameter Details |
|---|---|
| Material Steel | Heavy-duty Industrial Q235B / Q345B Steel |
| Tensioning Force | 100 - 300 Tons (Customizable) |
| Casting Bed Length | 50m - 120m (Modular Design) |
| Curing Compatibility | Natural curing or Integrated Steam heating pipeline |
| Applicable Products | Lintel, T-beam, Double-T Slab, Boundary Wall Pillar |
